Objective

Crack detection has vital importance for structural health monitoring and inspection. We would like to train a network to detect Cracks, we will denote the images that contain cracks as positive and images with no cracks as negative. In this lab you are going to have to download the data and study the dataset. There are two questions in this lab, including listing the path to some of the image files as well as plotting a few images. Remember the results as you will be quizzed on them.

Table of Contents

Estimated Time Needed: 25 min

Imports and Auxiliary Functions

The following are the libraries we are going to use for this lab:

from PIL import Image
from matplotlib.pyplot import imshow
import pandas
import matplotlib.pylab as plt
import os
import glob
import skillsnetwork

We will use this function in the lab to plot:

def show_data(data_sample, shape = (28, 28)):
    plt.imshow(data_sample[0].numpy().reshape(shape), cmap='gray')
    plt.title('y = ' + data_sample[1])

Download Data

In this section, you are going to download the data from IBM object storage using skillsnetwork.prepare command. skillsnetwork.prepare is a command that’s used to download a zip file, unzip it and store it in a specified directory. Locally we store the data in the directory /resources/data.

await skillsnetwork.prepare("https://s3-api.us-geo.objectstorage.softlayer.net/cf-courses-data/CognitiveClass/DL0321EN/data/images/concrete_crack_images_for_classification.zip", path = "/resources/data", overwrite=True)
Saved to '../../../../../data'

We then download the files that contain the negative images:

Examine Files

In this section we are going to get a list of the negative image files, then plot them. Then for the first question your job to do something similar to the positive files.

The path to all the images are stored in the variable directory.

directory="/resources/data"

The images with out the cracks are stored in the file Negative

negative='Negative'

We can find the path to the file with all the negative images by using the function os.path.join. Inputs are the variable directory as well as the variable negative.

negative_file_path=os.path.join(directory,negative)
negative_file_path
'/resources/data/Negative'

Loading the File Path of Each Image

We need each the path of each image, we can find the all the file in the directory negative_file_path using the function os.listdir, the result is a list. We print out the first three elements of the list.

 os.listdir(negative_file_path)[0:3]
['19985.jpg', '14475.jpg', '10720.jpg']

We need the full path of the image so we join them as above. Here are a few samples three samples:

[os.path.join(negative_file_path,file) for file in  os.listdir(negative_file_path)][0:3]
['/resources/data/Negative/19985.jpg',
 '/resources/data/Negative/14475.jpg',
 '/resources/data/Negative/10720.jpg']

In some cases, we may have files of a different type, so we have to ensure it’s of type jpg. We have to check the extension using the method endswith(). The method endswith() returns True if the string ends with the specified suffix, otherwise, it will return False. Let’s do a quick example:

print("test.jpg".endswith(".jpg"))
print("test.mpg".endswith(".jpg"))
True
False

We now have all the tools to create a list with the path to each image file. We use a List Comprehensions to make the code more compact. We assign it to the variable negative_files , sort it in and display the first three elements:

negative_files=[os.path.join(negative_file_path,file) for file in  os.listdir(negative_file_path) if file.endswith(".jpg")]
negative_files.sort()
negative_files[0:3]
['/resources/data/Negative/00001.jpg',
 '/resources/data/Negative/00002.jpg',
 '/resources/data/Negative/00003.jpg']

Question 1

Using the procedure above, load all the images with cracks paths into a list called positive files, the directory of these images is called Positive. Make sure the list is sorted and display the first three elements of the list you will need this for the question so remember it.

positive="Positive"

positive_file_path=os.path.join(directory,positive)
positive_file_path

os.listdir(positive_file_path)[0:3]

[os.path.join(positive_file_path,file) for file in  os.listdir(positive_file_path)][0:3]

positive_files=[os.path.join(positive_file_path,file) for file in  os.listdir(positive_file_path) if file.endswith(".jpg")]
positive_files.sort()
positive_files[0:3]

['/resources/data/Positive/00001.jpg',
 '/resources/data/Positive/00002.jpg',
 '/resources/data/Positive/00003.jpg']

Display and Analyze Image With No Cracks

We can open an image by using the Image Module in the PIL library, using the function open. We only require the image path; the input is the path of the image. For example we can load the first image as follows:


image1 = Image.open(negative_files[0])
# you can view the image directly
#image

we can plot the image

plt.imshow(image1)

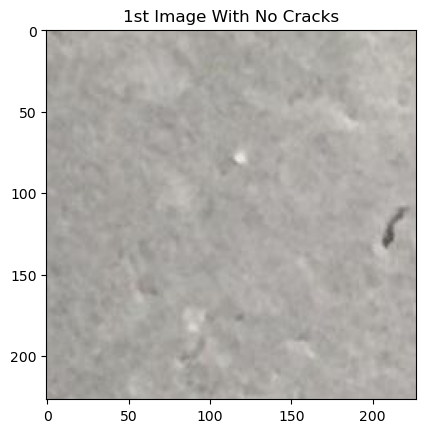

plt.title("1st Image With No Cracks")
plt.show()

We can also plot the second image.

image2 = Image.open(negative_files[1])
plt.imshow(image2)

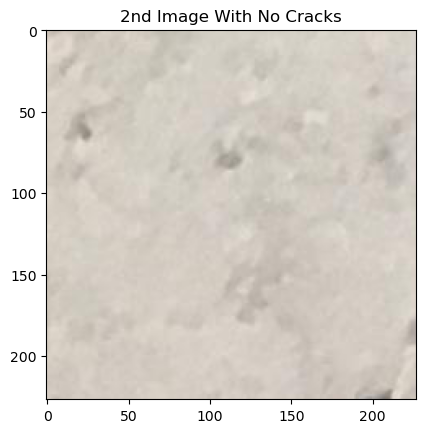

plt.title("2nd Image With No Cracks")
plt.show()

Question 2

Plot the first three images for the dataset with cracks. Don’t forget. You will be asked in the quiz, so remember the image.

image3 = Image.open(negative_files[1])
plt.imshow(image2)
plt.title("2nd Image With No Cracks")
plt.show()
